Drip Rail: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

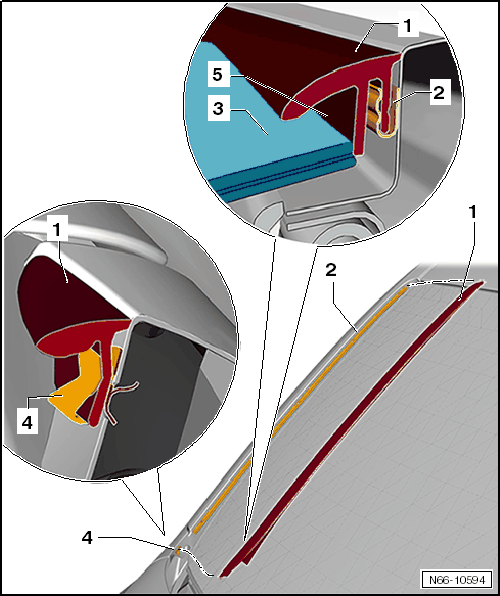

Fig 1: Identifying Drip Rail Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the drip rail -1- on the retaining strip -2- and the retaining clip -4- and center.

-- Press the drip rail -1- from the bottom to the top into the retaining strip -2- and the retaining clip -4-.

-- Thread the lip -5- of the drip rail behind the windshield -3-.
