Spoiler On The Edge Of The Roof, Removing And Installing, From 09/2014: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Removing

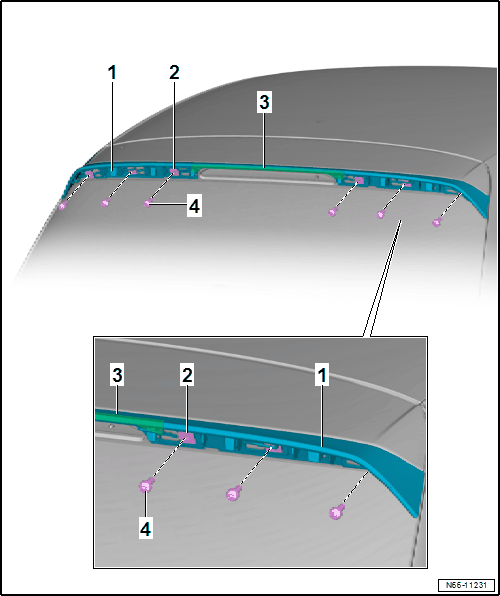

-- Pull the cover -1- using the clamps -2- out of the spoiler on the edge of the roof in direction of -arrow a-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Remove the bolts -4-.
-- Remove the spoiler on the edge of the roof -1- from the rear lid -3-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
