Spoiler On The Edge Of The Roof, Removing And Installing, From 09/2014: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

The pop rivet nuts -6- must be installed.

-- Clean the adhesive surface area -7-.

-- Position the spoiler on the edge of the roof -1- on the rear lid.

-- Install the bolts -5-, but do not tighten.

-- Remove the protective film from the adhesive tape -4- using the puller -3-.

-- Press the spoiler on the edge of the roof firmly on the adhesive tape area -7-.

-- Tighten the screws -5-.

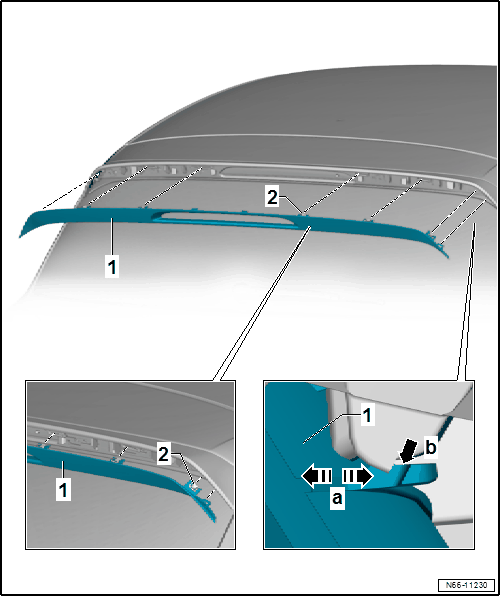

Fig 1: Spoiler On The Edge Of The Roof

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the cover -1- using the clamps -2- into the spoiler on the edge of the roof -arrow a-.
