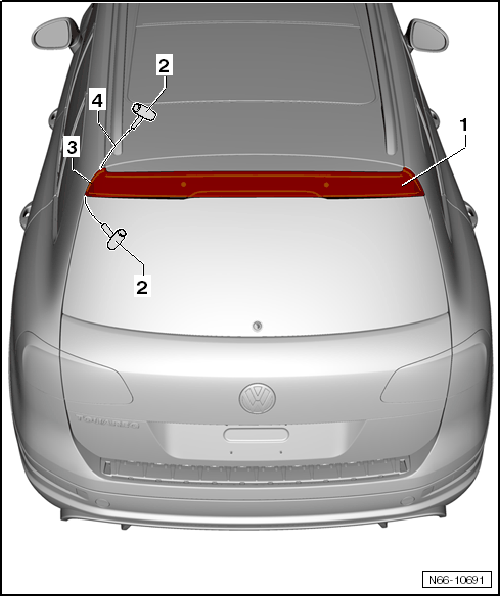

R-Line Spoiler On The Edge Of The Roof, Removing And Installing, Through 09/2014: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools And Workshop Equipment Required
- Bonded Window Tool Kit - Pull Handle: VAG1351/1
- Double Cartridge Gun: VAS5237
NOTE:
The spoiler on the edge of the roof cannot be removed without destroying it.
WARNING:
When disassembling roof edge spoiler, a cutting cable must not be used because of the danger of damaging painted surfaces.
NOTE:
Remove dirt from all joints, so that no paint damage can occur during removal of attachment parts.
Cover all adjacent paint surfaces and gap between roof and rear lid with tape.
