R-Line Spoiler On The Edge Of The Roof, Removing And Installing, Through 09/2014: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

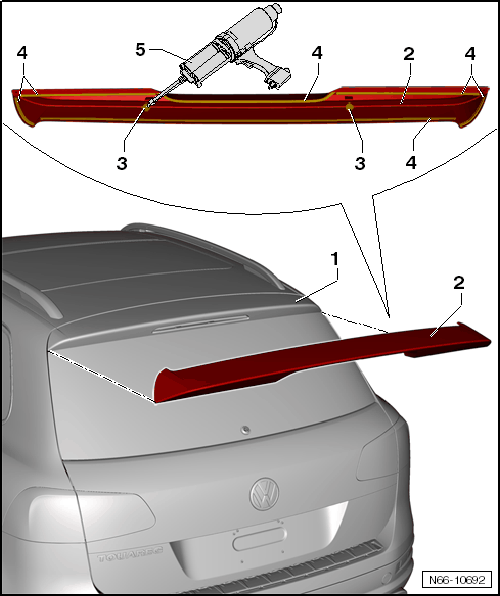

Fig 1: Identifying Roof Edge Spoiler, Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Follow repair instructions. Refer to REPAIR INFORMATION .

Surfaces of roof edge spoiler -1- and rear lid are primed.

-- Apply 2K window adhesive using the Double Cartridge Gun: VAS5237 -5- on the specified positions -3- on the left and right side of the spoiler on the edge of the roof -2-.

-- Peel off the protective film from the two-sided adhesive tape -4-.

-- Position the roof spoiler -2- on the rear lid -1- with a second technician.

NOTE:

Make sure the spoiler -2- fits correctly.

-- Firmly press on the roof spoiler -2- and secure it with cloth reinforced tape.
