Overview - R-Line Spoiler On The Edge Of The Roof, Through 09/2014

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

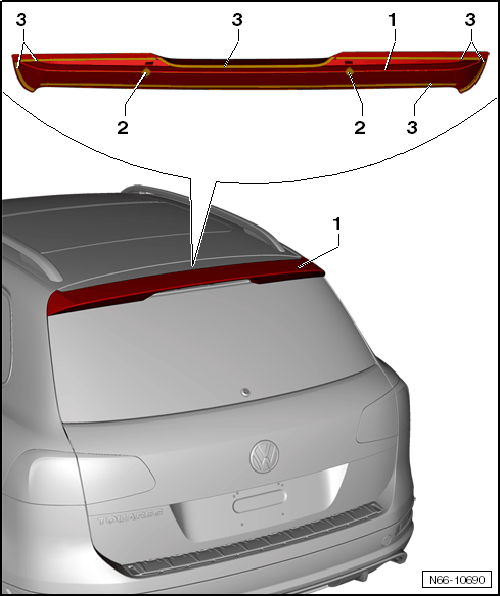

Fig 1: - R-Line Spoiler On The Edge Of The Roof, Through 09/2014
GWWN66-10690Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Spoiler on Roof Edge
  2. PUR Adhesive Point
    • Left and right
    • Adhesive: -width- = 5 mm, -height- = 7 mm
  3. Two-Sided Adhesive Tape
