Roof Railing, Removing And Installing: Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

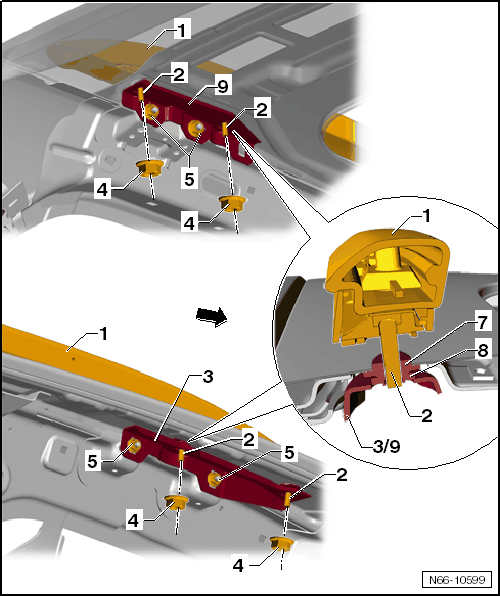

NOTE:
The -arrow- points in the direction of travel.
- All angle brackets -4- are installed. Refer to ROOF RAIL ANGLE BRACKET, REMOVING AND INSTALLING
-- Install the roof rail -1- evenly on the roof. Start with the front threaded pin -2-.
-- Tighten the hex nuts -4-, tightening specification: 10 Nm.
