New Angle Bracket, Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

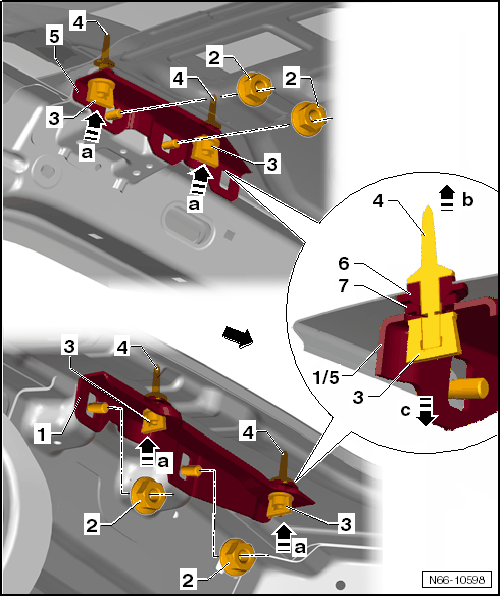

-- Install the new angle bracket -1- until the securing pins -5- latch inside the roof in direction of -arrows a-.
-- Tighten the nuts -2-, tightening specification: 2 Nm.
-- If dents appear around the base of the roof rail, readjust angle bracket.
-- Remove the securing pin -4- upward in direction of -arrow b- and remove the securing cap -3- downward in direction of -arrow c-.
