Bracket, Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Do not interchange the conical washers -3 and 4-.

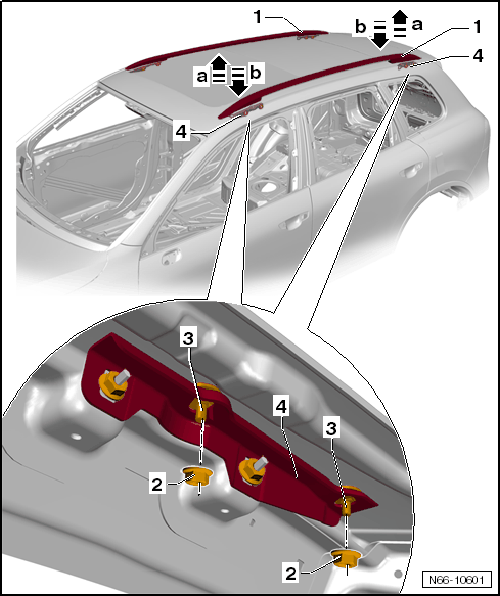

Fig 1: Identifying Roof Rail Angle Bracket Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

If you have secure the conical washers with adhesive tape, remove tape before installation.

-- Make sure the conical washers -4 and 5- fit properly.

-- Place the roof railing -1- on the roof -6-, then guide the angle bracket -1 and 3- over the threaded bolts until the conical washers -4 and 5- are centered.

-- Tighten the nuts -2- until the angle bracket comes in contact with the roof.

Fig 2: Identifying Roof Rail Angle Bracket, Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the nuts -2-, tightening specification: 2 Nm.

-- If dents appear around the base of the roof rail, readjust angle bracket.
