Angle Bracket, Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If angle bracket is to be re-installed, make sure conical washers remain in tolerance compensations in their places.

Always use a lower and upper conical washer.

The conical washers must not be interchanged.

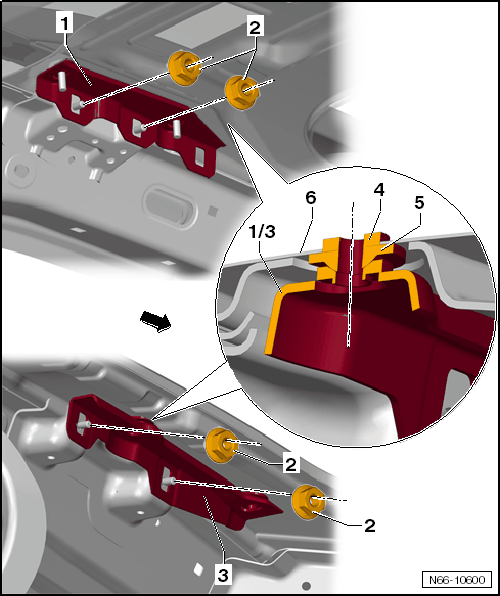

Fig 1: Identifying Roof Rail Angle Bracket Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

-- Remove the roof rail. Refer to REMOVING .

-- Remove nuts -2-.

-- Remove the angle bracket -1 and 3- together with the tolerance compensations -4 and 5-.

If the angle bracket is to be reinstalled, secure the tolerance compensations to the angle bracket with commercially available adhesive tape.
