Emblem, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

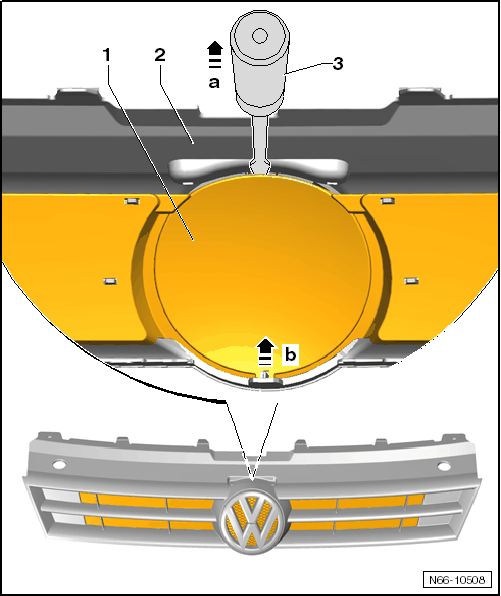

Fig 1: Identifying Trim, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the trim -1- with a screwdriver -3- out of the upper bracket in direction of -arrow a-.

-- Pull the trim -1- up at an angle in direction of -arrow b- out of the lower bracket.

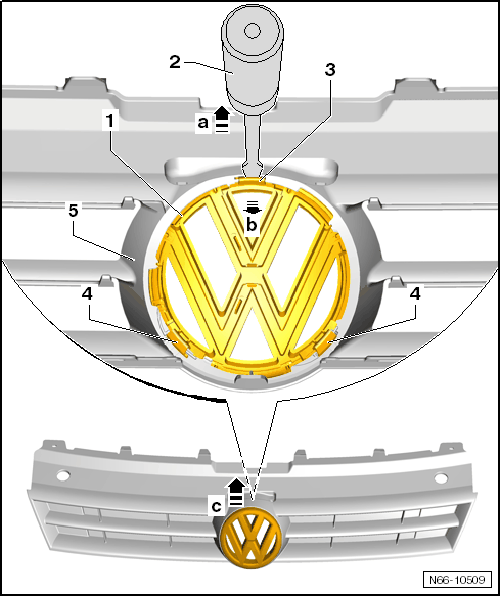

Fig 2: Identifying Emblem, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press together the upper retaining hook -3- with a screwdriver -3- in direction of -arrow a- and press it out of the radiator grille -5- in direction of -arrow b-.

-- Pull the emblem -1- with the two lower retaining hooks -4- up at an angle in direction of -arrow c- out of the radiator grille -1-.
