Emblem, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

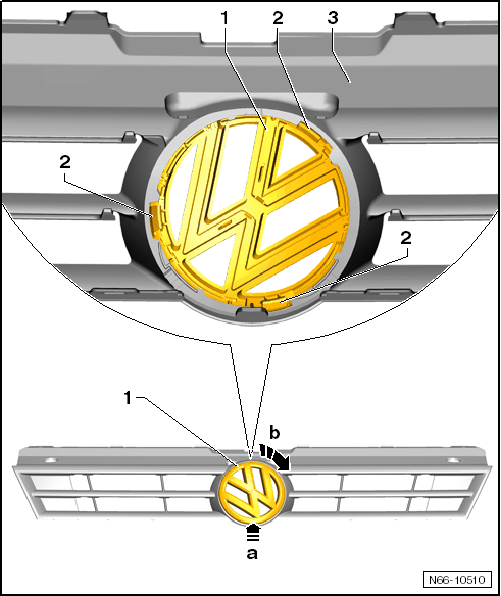

Fig 1: Identifying Emblem, Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the emblem -1- with the retaining hooks -2- into the recesses in the radiator grille -3- in direction of -arrow a-.

-- Turn the emblem in the direction of in direction of -arrow b- until the retaining hooks -2- engage.

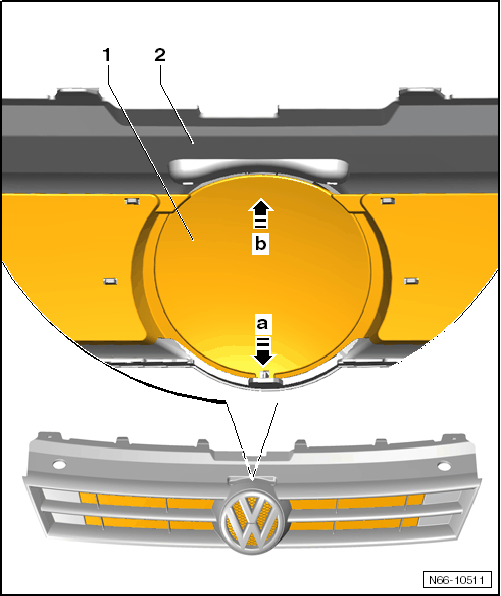

Fig 2: Identifying Trim, Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the trim -1- down at an angle in direction of -arrow a- into the lower bracket in the radiator grille -2-.

-- Press the trim -1- into the upper bracket in direction of -arrow b-.
