Front Peripheral Camera -R243-, Removing And Installing, From My 2015: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

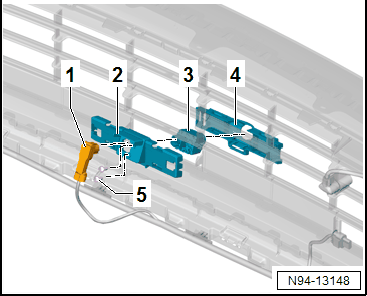

-- Remove the front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .
-- Disconnect the connector -1-.
-- Remove the bolts -5-.
-- Remove the camera housing from the bumper.
-- Release the clips on the camera housing -2-.
-- Remove the housing cover -4- while removing the Front Peripheral Camera - R243-.
