Parking Aid Control Module -J446- Removing And Installing, RHD: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electric consumers and remove the key.

NOTE:

It is necessary to remove the fuse panel on the driver side because there is a wiring harness behind it. The wires can remain connected to the fuse panel.

-- Remove the fuse panel on the driver side. Refer to FUSE HOLDER, REMOVING AND INSTALLING .

-- Remove the bracket for the Comfort System Central Control Module -J393-. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393- BRACKET, REMOVING AND INSTALLING .

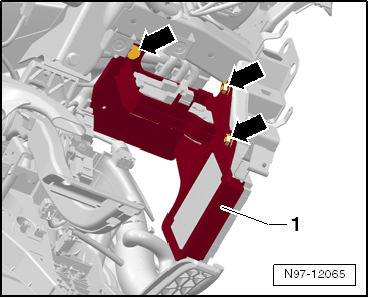

-- Remove the 3 bolts -arrows- and lower the control module mount -1-. Be careful of the different wires still connected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the 3 connectors -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

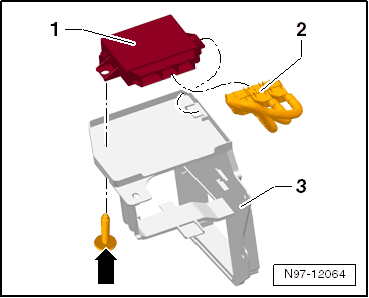

-- Remove the bolt -arrow- and then remove the Parking Aid Control Module -J446- -1- from the bracket -2-.
