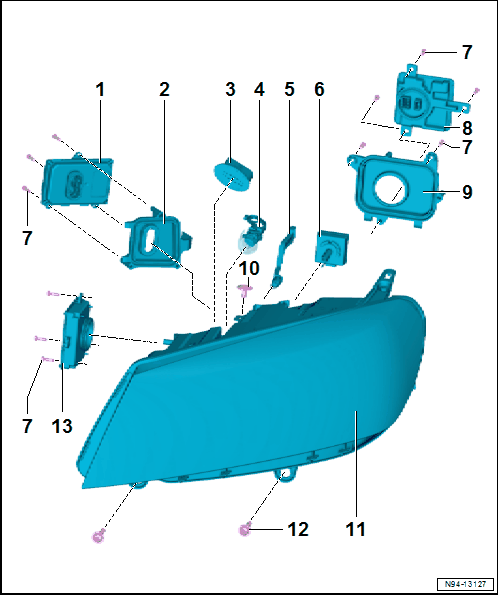

Overview - Hid Headlamp With Dynamic High Beam Control, From My 2015

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Headlamp Power Output Stage -J667- or Right Headlamp Power Output Stage -J668-
- Removing and installing. Refer to HEADLAMP POWER OUTPUT STAGES
  NOTE:
  The cornering lamp and headlamp range control module must be coded after installing a new Headlamp Power Output Stage -J746- and then perform a basic setting for the headlamp. Refer to the => 29.1.
Cap
Central Connector
Left Front Turn Signal Bulb -M5- and Right Front Turn Signal Bulb -M7-
- Bulb 12V, PSY24W SV
- Replacing. Refer to FRONT TURN SIGNAL BULB, REPLACING .
Left Position Lamp Bulb -M1- or Right Position Lamp Bulb -M3-
- Replacing. Refer to POSITION LAMP BULB, REPLACING .
Left HID Headlamp Bulb -L13- or Right HID Headlamp Bulb -L14- ("Bi-Xenon")
WARNING:
Note usage and safety notes for HID headlamp bulbs. Refer to HID HEADLAMP USAGE AND SAFETY PRECAUTIONS .
- Type D3S, 35W
- Replacing. Refer to HID HEADLAMP BULB, REPLACING .
Screws
- 2 Nm
Left HID Headlamp Control Module -J343- or Right HID Headlamp Control Module -J344-
NOTE:
The Left HID Headlamp Control Module -J343- and Right HID Headlamp Control Module -J344- is not capable of On Board Diagnostic (OBD).
- Removing and installing. Refer to HID HEADLAMP CONTROL MODULE
Cap
Bolt
- 5 Nm
Headlamp
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING
- Correcting installation position of headlamp. Refer to HEADLAMP INSTALLED POSITION, CORRECTING .
- Headlamp mounting tabs, servicing. Refer to HEADLAMP MOUNTING TABS, SERVICING .
- Perform a basic setting on the headlamp. Refer to => 29.1.
Screws
- 5 Nm
- For attaching the headlamp
Daytime Running Lamp Power Output Stage --
- Removing and installing. Refer to Daytime Running Lamp Power Output Stage --, REMOVING AND INSTALLING

Not Illustrated:

Cornering Lamp and Headlamp Range Control Module -J745- (on a cross bar in the center of the instrument panel behind the "RCD 550" radio/Front Information Display Control Head -J685-), Removing and Installing. Refer to Cornering Lamp and Headlamp Range Control Module -J745-, REMOVING AND INSTALLING .
