Headlamp Range Control Positioning Motor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electric consumers and remove the key.

-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

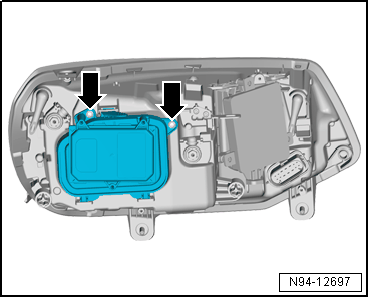

-- Remove both screws -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the lock button and, starting at the top, remove the cover with the control module -2- from the headlamp housing.

-- Disengage the cover from the lower guides and move it to the side. Pay attention to the wires still connected.

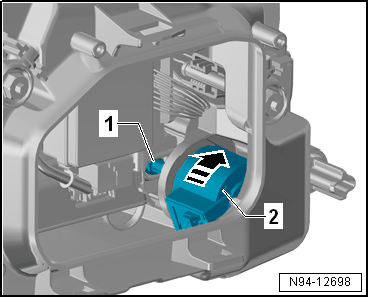

-- Turn the headlamp range control positioning motor -2- all the way in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the headlamp beam adjustment motor -2- so that it is possible to disengage the ball head -1- from the reflector toward the rear.

-- Remove headlamp range control positioning motor from the headlamp while being careful of connected wires.

-- Disconnect the connector -1- and remove the positioning motor -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
