Fog Lamp, Removing And Installing, Through My 2014, R-Line: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Remove the key.

-- Remove front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .

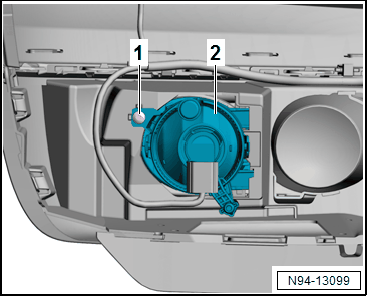

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fog lamp -2- from the side mounts and remove from the bumper opening while paying attention to the connected wires.

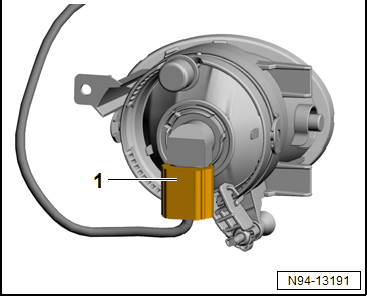

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
