Rear Heated Seat Regulating Switch --, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Remove the rear vents. Refer to REAR VENT, REMOVING AND INSTALLING [For engine(s) CGFA, CATA, CGRA] .
-- Remove the rear storage compartment and center console. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .

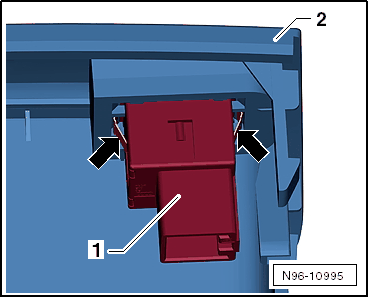

-- Press the clips -arrows- and remove the Left Rear Heated Seat Regulating Switch -E128- and Right Rear Heated Seat Regulating Switch -E129- from the storage compartment -2- toward the rear.
