Overview - Underbody Trim Panels

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The illustration shows the left side. The right side is identical.

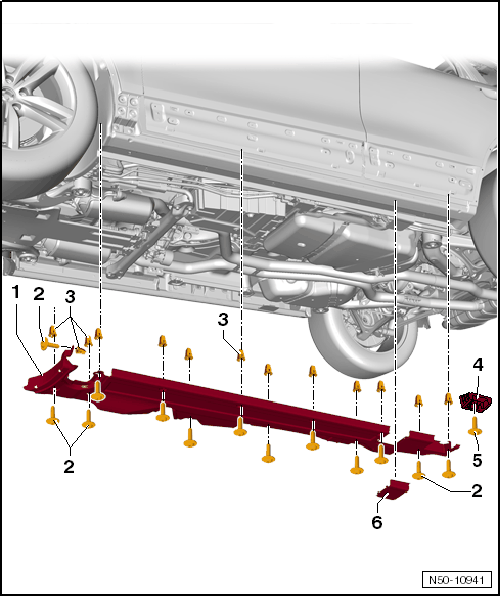

Fig 1: Exploded View Of Underbody Trim Assembly With Components
GWWN50-10941Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Underbody Cover
    • Removing:

      -- Remove the hex nuts -2-.

  2. Bolt
    • 2 Nm
    • 12 bolts from below
    • 1 bolt behind the wheel housing liner
  3. Expanding Nut
    • Quantity: 13
  4. Hoist Mount
  5. Bolt
    • Tightening specification: 2 Nm
    • Quantity: 1
  6. Cover
    • For vehicle lift point
