Plenum Chamber Bulkhead, Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The center plenum chamber bulkhead is installed first.

When installing the left and right plenum chamber bulkheads, make sure the seal is seated correctly.

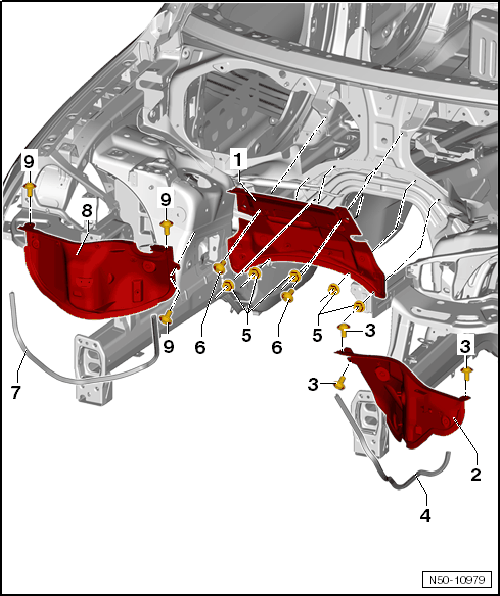

Fig 1: Identifying Left And Right Plenum Chamber Bulkheads

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

For the center plenum chamber bulkhead:

-- Install the center plenum chamber bulkhead -1-.

-- Tighten the hex nuts -5-. Tightening Specification: 6 Nm

-- Tighten the bolts -6-. Tightening Specification: 6 Nm

For the left plenum chamber bulkhead:

-- Install the left plenum chamber bulkhead -2- with the seal -4-.

-- Tighten the bolts -3-. Tightening Specification: 6 Nm

For the right plenum chamber bulkhead

-- Install the right plenum chamber bulkhead -8- with the seal -7-.

-- Tighten the bolts -9-. Tightening Specification: 6 Nm
