Overview - Plenum Chamber Bulkhead

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

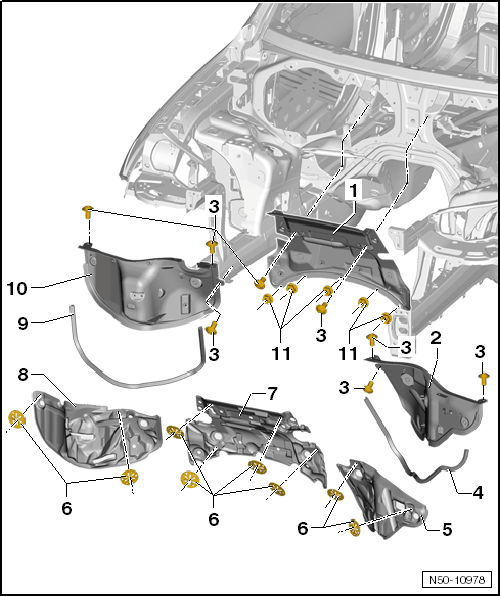

Fig 1: Exploded View Of Plenum Chamber Bulkhead Assembly With Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Center Plenum Chamber Bulkhead
- Removing:
  -- Remove the plenum chamber cover. Refer to REMOVING .

  -- Remove the bolt -2-.

  -- Pull the plenum chamber bulkhead up out of the plenum chamber -4-.
Left Plenum Chamber Bulkhead
Bolt
- Tightening specification: 6 Nm
- Quantity: 8
Seal
- For the left plenum chamber bulkhead
  NOTE:
  When installing the plenum chamber bulkhead, make sure the seal is seated correctly.
Insulation
- For the left plenum chamber bulkhead
- Secured with lock washers
Lock Washer
- For securing the insulation to the plenum chamber bulkhead
Insulation
- For the center plenum chamber bulkhead
- Secured with lock washers
Insulation
- For the right plenum chamber bulkhead
- Secured with lock washers
Seal
- For the right plenum chamber bulkhead
  NOTE:
  When installing the plenum chamber bulkhead, make sure the seal is seated correctly.
Right Plenum Chamber Bulkhead
Hex Nut
- 6 Nm
- Quantity: 5
