Coupling, Unlocking

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Unlock the clip -1- in direction of -arrow a-.

-- Pull the pressure hose -2- out of the coupling -3- in direction of -arrow b-.

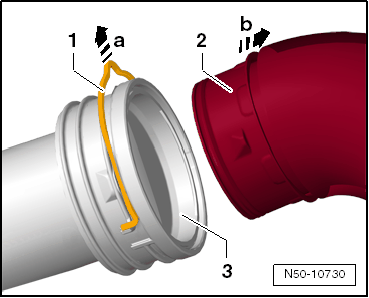

Fig 1: Identifying Opened Clamp & Detached Pressure Hose From Coupling
GWWN50-10730Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
