Overview - Deformation Element

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The bolt numbering indicates the bolt sequence.

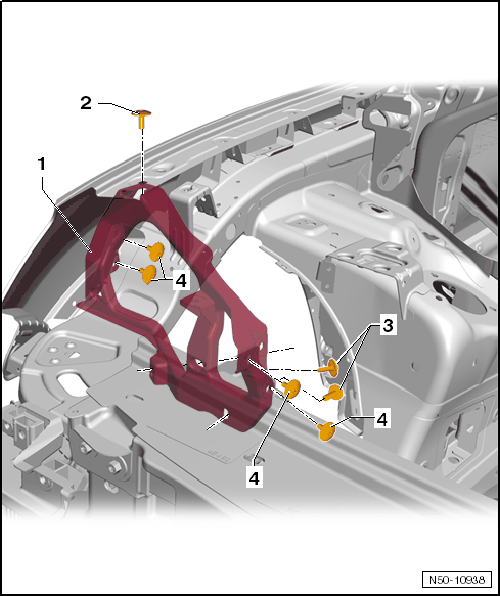

Fig 1: Identifying Deformation Element Assembly Overview
GWWN50-10938Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Deformation Element
  2. Bolt
    • 6 Nm
    • Quantity: 1 at fender
  3. Bolt
    • 8 Nm
    • Quantity: 2
  4. Bolt
    • 8 Nm.
    • Quantity: 2 at upper longitudinal member
    • Quantity: 2 on support
