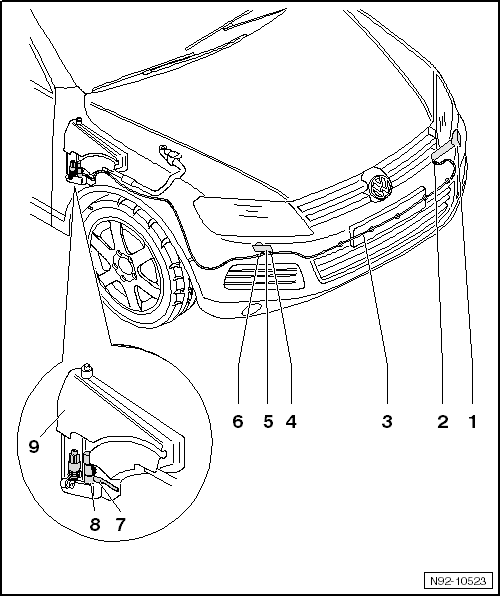

Overview - Headlamp Washer System
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- 1 - Left Spray Jet Telescopic Cylinder
- Bolt tightening specification: 2 Nm
- Washer jet telescopic cylinder, removing and installing. Refer to LIFTING CYLINDER FOR SPRAY NOZZLES .
- Spray nozzle holder, removing and installing. Refer to SPRAY NOZZLE HOLDER .
- Spray nozzle, adjusting. Refer to HEADLAMP WASHER SYSTEM SPRAY NOZZLES, ADJUSTING .
- 2 - Connecting Piece
- Connection to lift cylinder for the left spray nozzle
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- 3 - Hose
- S 10 x 3 mm
- 4 - Angle Coupling
- Connection to the lift cylinder for the right spray nozzle
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- 5 - Right Spray Jet Telescopic Cylinder
- Washer jet telescopic cylinder, removing and installing. Refer to LIFTING CYLINDER FOR SPRAY NOZZLES .
- Spray nozzle holder, removing and installing. Refer to SPRAY NOZZLE HOLDER .
- Spray nozzle, adjusting. Refer to HEADLAMP WASHER SYSTEM SPRAY NOZZLES, ADJUSTING .
- Bolt tightening specification: 2 Nm
- 6 - Y-Connection
- Divides washer fluid line to washer nozzle lift cylinders
- 7 - Connecting Piece
- Connection to headlamp washer system pump
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- 8 - Headlamp Washer Pump -V11-
- Removing and installing. Refer to Headlamp Washer Pump -V11-
- Checking. Refer to Vehicle Electrical System Control Module - J519-, OUTPUT DIAGNOSTIC TEST MODE .
- 9 - Windshield Washer Fluid Reservoir
- Removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING
