Steering Column Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

In vehicles with an electrically adjustable steering column, the following setting must be made prior to disconnecting the battery:

-- Move the steering wheel to the end stop in the lowest setting position.

-- Move the steering wheel to the end stop in the direction of the vehicle interior.

-- In vehicles with a manually adjustable steering column, release the steering wheel adjustment locking lever and pull out the steering wheel and press it down.

-- Remove the airbag unit on the driver side. Refer to DRIVER SIDE AIRBAG UNIT, REMOVING AND INSTALLING .

-- Remove the steering wheel. Refer to appropriate service information. .

-- Pry the steering column trim upper part -1- out of the mounts using the : 3409 .

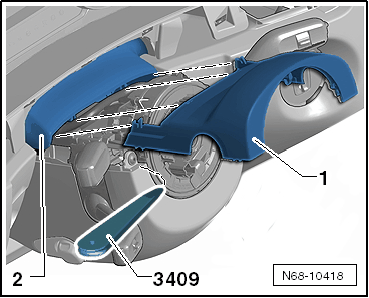

Fig 1: Steering Column Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the steering column trim upper part from the gap cover -2-.

Vehicles with manually adjustable steering columns:

-- Release the steering wheel adjustment locking lever -4-.

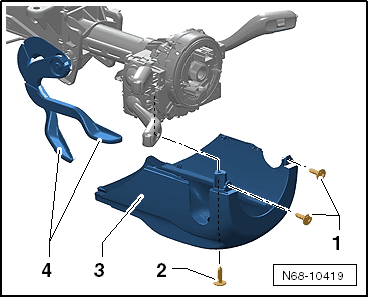

Fig 2: Steering Wheel Adjustment Locking Lever -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the two screws -1- (1.5 Nm ).

-- Remove the bolt -2- (1.5 Nm ).

-- Detach the steering column trim lower part -3- from the steering column.

Vehicles with power steering columns:

-- Remove the two screws -1- (1.5 Nm ).

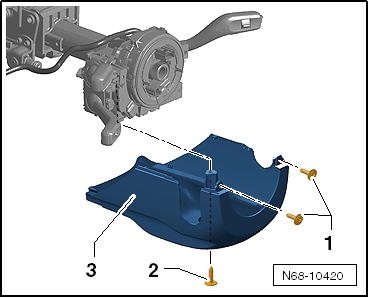

Fig 3: Steering Columns: Bottom Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- (1.5 Nm ).

-- Detach the steering column trim lower part -3- from the steering column and disconnect the harness connector.
