Instrument Trim, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

11 rubber tabs are attached around the periphery of the rear side of the trim. Prior to installation, ensure that the trim is equipped with all rubber tabs!

-- Connect the vent harness connectors.

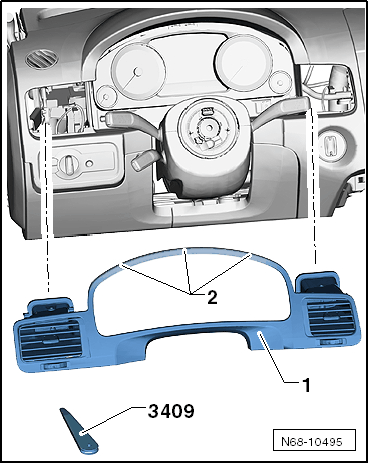

-- Insert the instrument trim -1- in the instrument panel while ensuring the correct height of the 3 retaining tabs -2- and engage.

Fig 1: Instrument Trim
GWWN68-10495Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
