Instrument Housing Cover: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Steering wheel set to the end stop in the lowest position.
Steering wheel set to the end stop in the direction of the vehicle interior.

-- Turn off the ignition.

-- Remove the instrument panel trim. Refer to INSTRUMENT TRIM, REMOVING AND INSTALLING .

NOTE:

It is not necessary to unclip the gap cover -2-.

-- Pry the steering column trim upper part -1- out of the mounts using the : 3409 .

Fig 1: Steering Column Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the 2 screws -1- (1.5 Nm ) and unclip the instrument housing cover -2-.

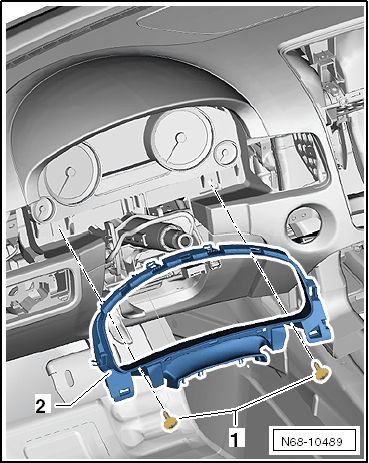

Fig 2: Instrument Housing Cover -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

During unclipping, the instrument housing cover must be raised slightly above the instrument cluster!
