Glove Compartment, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition.

-- Remove the instrument panel side cover on the front passenger side. Refer to SIDE INSTRUMENT PANEL COVERS, REMOVING AND INSTALLING .

-- Remove the footwell cover on the front passenger side. Refer to FOOTWELL COVERS, REMOVING AND INSTALLING .

-- If equipped, remove Information Electronics Control Module 1 -J794- inside the glove compartment. Refer to RADIO/NAVIGATION SYSTEM "RNS 850" Information Electronics Control Module 1.

-- Remove the Glove Compartment Lamp -W6- and Glove Compartment Lamp Switch -E26-. Refer to INSTRUMENT PANEL LAMPS AND SWITCHES .

-- Open the glove compartment and remove the 6 bolts -arrows- (1.5 Nm ).

-- Detach the glove compartment from the instrument panel.

-- If equipped, unclip the External Audio Source Connection -R199-.

-- In vehicles with a front passenger airbag shut-off, disconnect the connector from the Front Passenger Airbag Deactivation Key Switch -E224-.

-- In vehicles with glove compartment cooling, remove the A/C channel from the glove compartment.

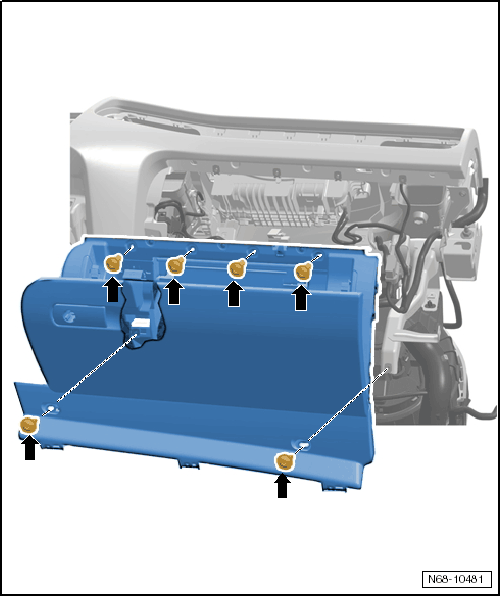

Fig 1: Glove Compartment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
