Glove Compartment Lock Cylinder, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Open the glove compartment.

NOTE:

It is not possible to remove just the lock cylinder -1-. The unlock button -2- must be replaced.

-- Remove the screw -3- and then remove the release button -2- from the glove compartment cover.

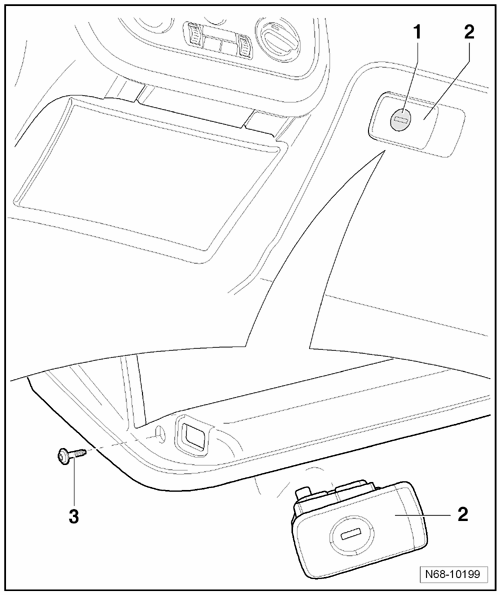

Fig 1: Glove Compartment Lock Cylinder Removing/Installing Components
GWWN68-10199Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
