Gearshift Mechanism Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Place the selector lever in the "N" position.
- Open the storage compartment/ashtray unit.
-- Turn off the ignition.
-- Unclip the selector lever boot. Refer to SELECTOR MECHANISM [For transmission(s) 0C8] [For engine(s) CGFA, CATA, CGRA] .

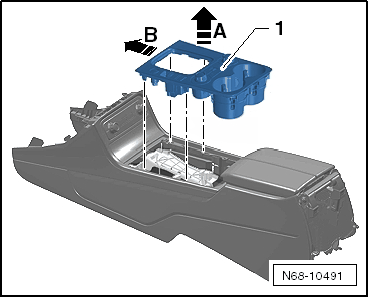

-- In the selector mechanism opening, grasp on the right side under the trim -1- and carefully unclip it -arrow A-.
-- In the selector mechanism opening, grasp on the left side under the trim and carefully unclip it.
-- Slide the trim slightly forward in the direction of travel -arrow B-, pull it out in an upward direction and disconnect the harness connectors.
