Front Passenger Trim, Removing And Installing: Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

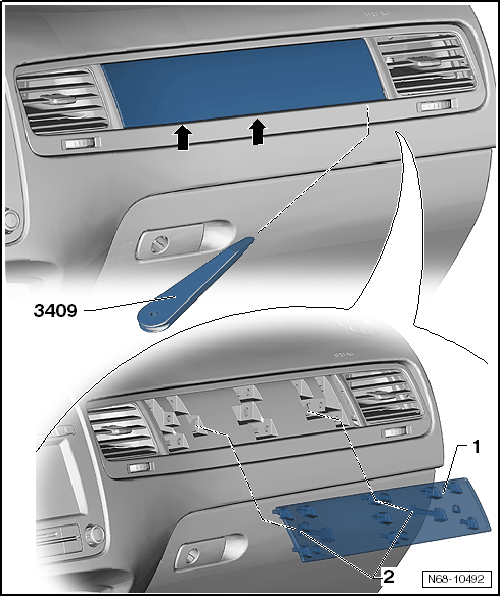

The front passenger trim -1- is clipped in the front passenger frame. There are 3 transparent plastic grommets and 5 rubber buffers in the frame for noise insulation. If plastic grommets and/or rubber buffers remain in the trim during removal, they must be removed from the trim. The plastic grommets and/or rubber buffers must then be reinstalled in the frame mounts.
-- Insert the catches -2- of the front passenger trim -1- in the corresponding key holes of the front passenger frame. Then move the trim to the left.
-- Insert the front passenger trim in the frame and engage it in the horizontal direction.
