Front Passenger Frame, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition.
-- Remove the trim on the front passenger side. Refer to FRONT PASSENGER TRIM, REMOVING AND INSTALLING .

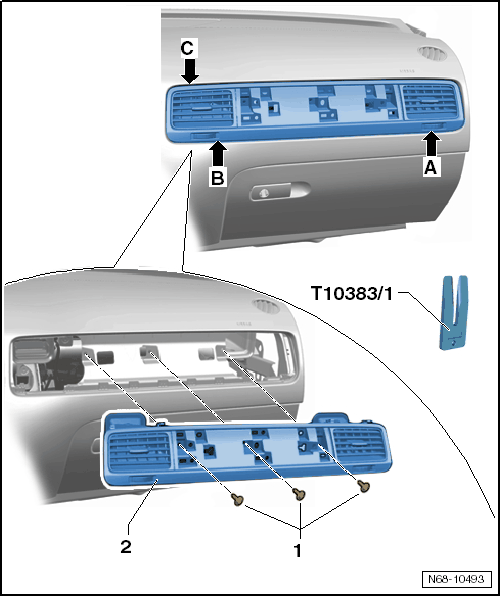

-- Remove the three bolts -1-.
-- Use the :T10383/1 to loosen the front passenger frame -2- underneath the right vent from the mounts -arrow A-.
-- Hold the frame in this area under >>tension<< so that it does not reengage.
-- Use the :T10383/1 to remove the frame beneath the left vent from the mounts -arrow B- and hold under >>tension<<.
-- Use the :T10383/1 to remove the frame above the left vent from the mounts -arrow C-.
-- Carefully remove the frame from the instrument panel without tilting it.
-- Disconnect the vent harness connectors.
