Front Center Armrest, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition.

-- Remove the rear vents. Refer to appropriate service information. .

-- Remove the rear trim from the center console. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Remove the four screws -2- (1.5 Nm ).

-- Remove the center armrest -1- upward from the center console.

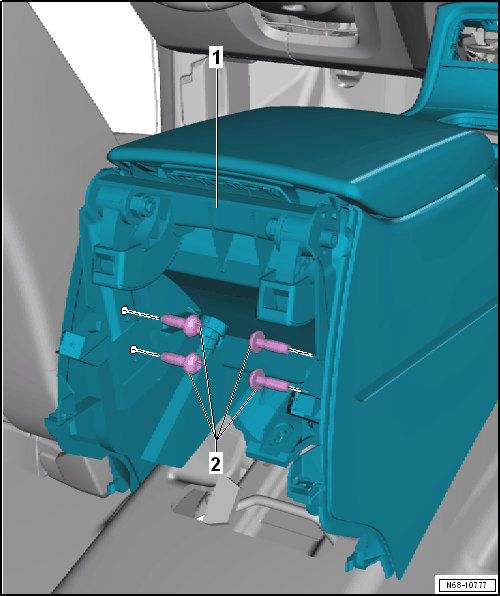

Fig 1: Center Armrest

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
