FOOTWELL Covers, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition.

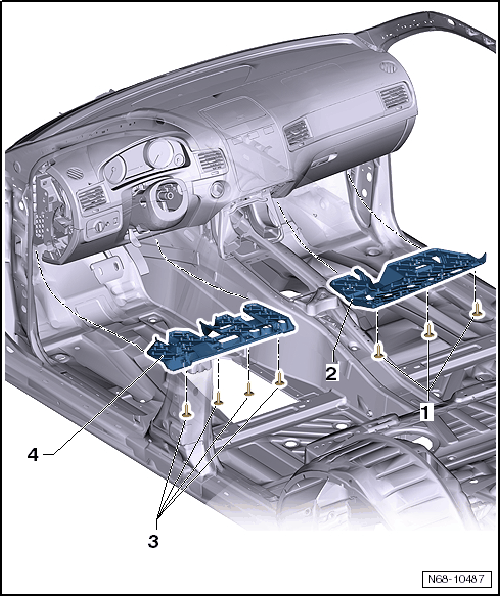

-- Remove the 3 screws -1- on the front passenger side (1.5 Nm ), remove the footwell cover -2- from the mounts and disconnect the connector.
-- Remove the 4 screws -3- on the driver side (1.5 Nm ), remove the footwell cover -4- from the mounts and disconnect the connector.
-- Unclip the diagnostic connector from the driver footwell cover.
