Driver Side Instrument Panel Right Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the side instrument panel cover on the driver side. Refer to SIDE INSTRUMENT PANEL COVERS, REMOVING AND INSTALLING .

-- Remove the instrument panel left trim on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL LEFT TRIM, REMOVING AND INSTALLING .

-- Remove the footwell cover on the driver side. Refer to FOOTWELL COVERS, REMOVING AND INSTALLING .

-- Remove the 4 bolts -arrows- (1.5 Nm ).

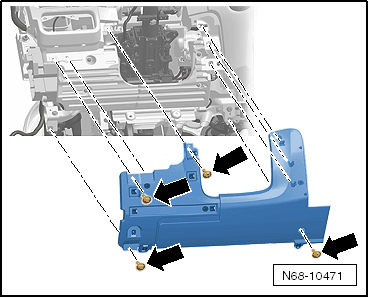

Fig 1: Front Passenger Side Right Instrument Panel Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the instrument panel trim.
