Driver Side Instrument Panel Left Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the side instrument panel cover on the driver side. Refer to SIDE INSTRUMENT PANEL COVERS, REMOVING AND INSTALLING .

-- Remove the lower bolt -2- (1.5 Nm ).

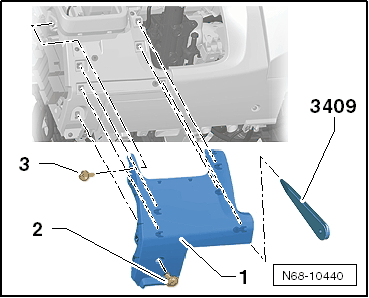

Fig 1: Panel Trim Remove/Install

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the side bolt -3- (1.5 Nm ).

-- Use the : 3409 to unclip the instrument panel trim -1-.
