Center Console, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition.

-- Remove the trim from the shift mechanism. Refer to GEARSHIFT MECHANISM TRIM, REMOVING AND INSTALLING .

-- Remove the storage compartment/ashtray. Refer to STORAGE COMPARTMENT/ASHTRAY, REMOVING AND INSTALLING .

-- Remove the Front A/C Display Control Head -E87- and Climatronic Control Module -J255-. Refer to DISPLAY AND CONTROL HEAD .

-- Remove the rear vents. Refer to AIR GUIDE .

-- Remove the rear trim from the center console. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Remove the 2 screws -1- on the left side next to the selector mechanism (1.5 Nm ).

-- Remove the 2 screws on the opposite side (1.5 Nm ).

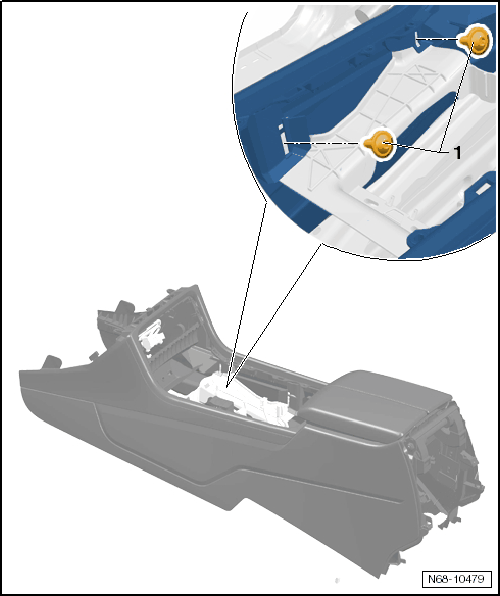

Fig 1: Center Console Side Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fold up the armrests, the lining mat -1- and the cover -2-.

-- Remove the bolts -3- (8 Nm ).

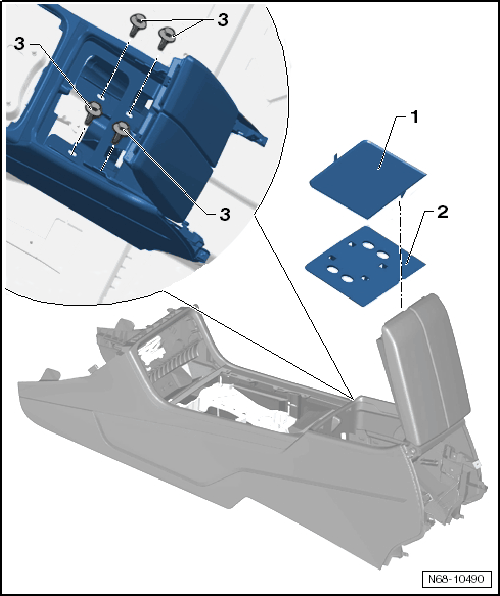

Fig 2: Armrest Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the two screws -1- (1.5 Nm ).

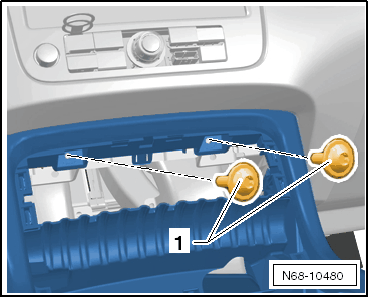

Fig 3: Front Piece Center Console Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- In vehicles with a 4-zone A/C system, remove the rear air vent adapter AIR GUIDE [For engine(s) CGFA, CATA, CGRA] .

-- Disconnect the connectors and lift the back of the center console.

-- Remove the center console from the vehicle.
