Center Console Rear Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition.

-- Remove the rear vents. Refer to appropriate service information. .

-- If present, disconnect the harness connector of the A/C display control head.

-- Remove the two screws -1- (1.5 Nm ).

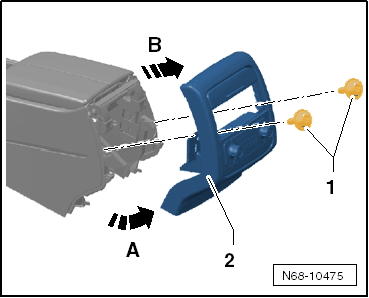

Fig 1: Rear Center Console Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Detach the trim -2- in the lower area -arrow A-.

-- Tilt the trim up until it disengages audibly.

-- Remove the trim from the center console -arrow B-.

-- Disconnect the connectors.
