Wheel Housing Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the seat benches. Refer to BENCH SEATS, REMOVING AND INSTALLING .

-- Remove the rear seats. Refer to REAR SEATS, REMOVING AND INSTALLING .

-- Remove the belt end fitting for the outer rear seat. Refer to REAR SEAT OUTER SEAT BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM, REMOVING AND INSTALLING .

-- Unclip the wheel housing trim -1-.

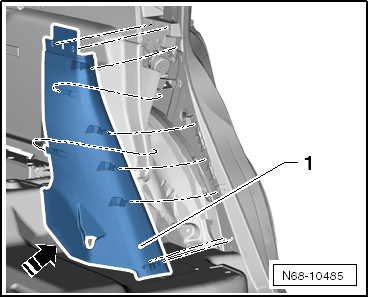

Fig 1: Wheel Housing Trim
GWWN68-10485Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
