Insulation And Roof Reinforcements, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Use a carpet knife to cut the insulation and roof reinforcements -1 and 2- into strips with a width of approx. 9 cm -3- -dotted lines-.

-- Pull off the strips -3- from roof.

-- Cut back the excess adhesive -4- using the :VAG1561 A and the :VAG1561/20 -5-.

NOTE:

If the paint structure was damaged while removing the insulation and roof reinforcements, paint damage must be repaired in accordance with the specifications in the Paint service information.

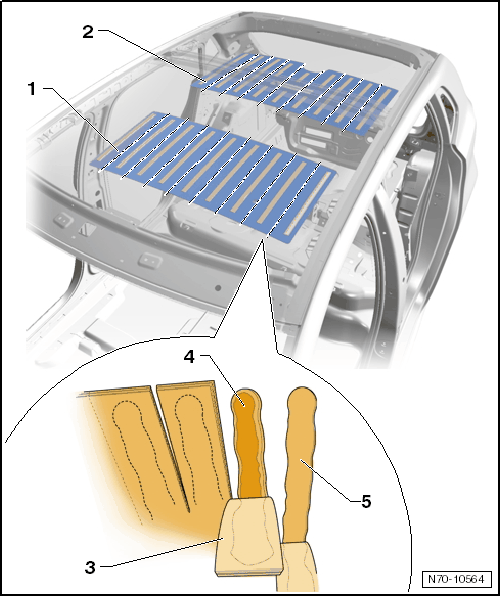

Fig 1: Identifying Front -1- And Rear -2- Insulation And Roof Reinforcement

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
