Insulation And Roof Reinforcements, Removing And Installing: Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The instructions for the use of adhesive must be observed when installing insulation and roof reinforcements.

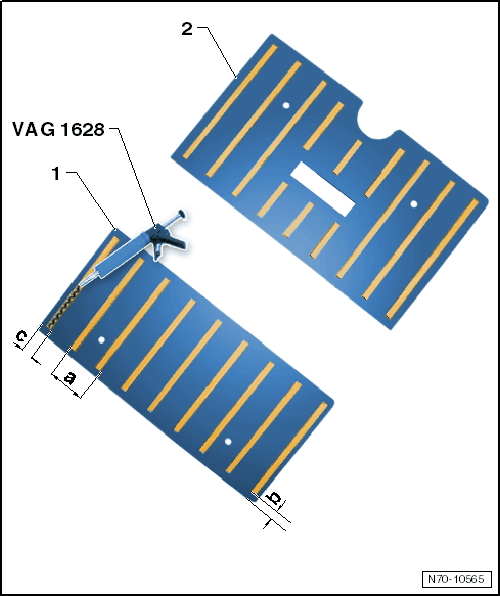

-- Use the :VAG1628 to apply adhesive D 190 MKD A3 to the front -1- and rear -2- insulation and roof reinforcement.
-- Apply the adhesive in beads.
- Dimension -a- = 94 ± 2 mm
- Dimension -b- = 25 ± 2 mm
- Dimension -c- = 25 ± 2 mm
-- Press the entire surface of the insulation and roof reinforcements onto the roof.
