Headliner, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with a panorama sunroof:

Panorama sunroof completely open.
Sun shade open approximately ² /₃ .

-- Switch off the ignition.

-- Remove the front interior and reading lamp. Refer to LAMPS AND SWITCHES IN ROOF TRIM PANEL

-- Remove the interior rearview mirror. Refer to INTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

-- Remove the camera cover. Refer to CAMERA COVER, REMOVING AND INSTALLING .

-- Remove the instrument panel side covers. Refer to SIDE INSTRUMENT PANEL COVERS, REMOVING AND INSTALLING .

-- Remove the A-pillar center trim panels. Refer to A-PILLAR CENTER TRIM, REMOVING AND INSTALLING .

-- Remove the A-pillar upper trim panels. Refer to A-PILLAR UPPER TRIM, REMOVING AND INSTALLING .

-- Detach the B-pillar trim panels from the mounts. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Detach the C-pillar trim panels from the mounts. Refer to C-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the D-pillar trim panels. Refer to D-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the roof grab handle. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .

-- Remove the sun visors. Refer to SUN VISORS, REMOVING AND INSTALLING .

-- In vehicles with eyelets -2-, press the cap -1- toward the outside of the vehicle and remove the underlying bolt -3- from the mount -4- (9 Nm).

Fig 1: Pressing Cap -1- Toward Outside Of Vehicle To Unscrew Underlying Bolt -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The bolts -3- have microencapsulation and must be replaced when installing the headliner.

The corresponding threads must be cleaned, for example, with a suitable wire brush prior to installation of the new bolts.

-- In vehicles with a panorama sunroof, clean the :80 - 200 to avoid soiling the headliner.

-- Using the :80 - 200 , slide it along between the panorama roof opening cover frame -2- and headliner -1- until one of the clips -3- is touched.

Fig 2: Sliding Pry Lever 80-200 Between Panorama Sunroof Opening Cover Frame -2- & Headliner -1- Until It Touches Retaining Clips -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Use the :80 - 200 to unclip the cover frame all around in the area of the clips -arrow-.

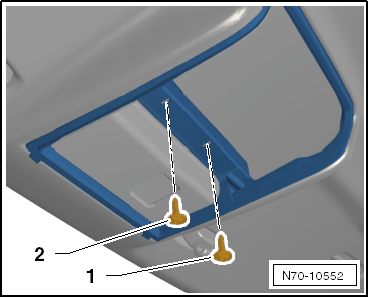

-- Remove the bolts -1 and 2- under the bracket.

Fig 3: Identifying Removing Bolts -1- And -2- Under Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully unclip the headliner from the roof crossmember -arrows-.

-- Together with a second technician, lower the headliner (risk of breakage) and carefully guide it out of the rear lid.

Fig 4: Lowering Headliner To Carefully Guide It Out Of Rear Lid

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
