Window Frame Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Emergency triangle removed.
-- Turn off the ignition.
-- Remove the rear lid trim. Refer to REAR LID TRIM PANEL, REMOVING AND INSTALLING .

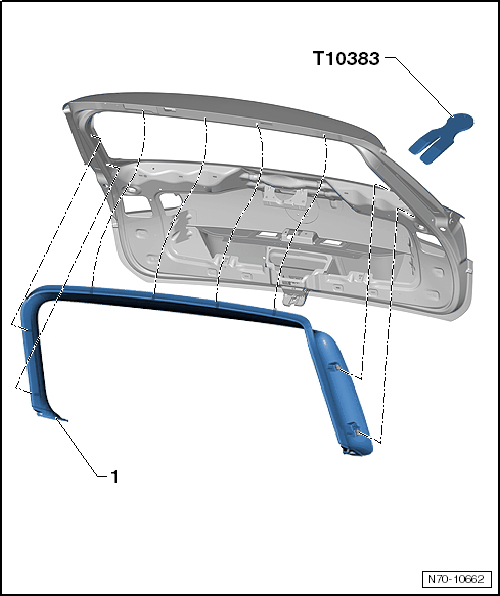

-- Use the :T10383 to pry the trim panel -1- on the side, in the area near the clips, out of the mounts in the rear lid.
-- Pry the trim at the upper edge in the area of the retaining clips out of the mounts.
