Rear Lid Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Emergency triangle removed.

-- Turn off the ignition.

-- If equipped, remove the Rear Lid Lock Button in Luggage Compartment -E406-. Refer to LUGGAGE COMPARTMENT LAMPS AND SWITCHES ; Lamps and Switches in Luggage Compartment; Rear Lid Lock Button in Luggage Compartment -E406- ; Rear Lid Lock Button in Luggage Compartment -E406-, Removing and Installing.

-- Remove the Rear Lid Courtesy Lamp - W51-. Refer to LUGGAGE COMPARTMENT LAMPS AND SWITCHES ; Luggage Compartment Lamps and Switches Rear Lid Courtesy Lamp -W51- ; Rear Lid Courtesy Lamp - W51-, Removing and Installing

-- Remove the two bolts -1- in the recess of the warning triangle.

-- Remove the bolts -2- and -3- from each handle recess.

-- Pry the trim panel out of the mounts in the lid using the :T10383 .

-- Detach the rear lid trim from the window frame trim on both sides.

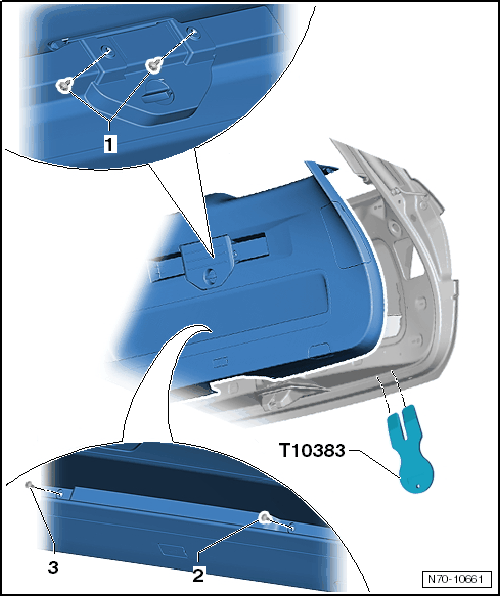

Fig 1: Identifying Removal/Installation Of Rear Lid Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
