D-Pillar Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Luggage compartment cover rolled up.

-- In vehicles with basic equipment, unclip the trim -1-.

-- In vehicles with comfort equipment, remove the bolt -3- (3 Nm ) and unclip the trim -2-.

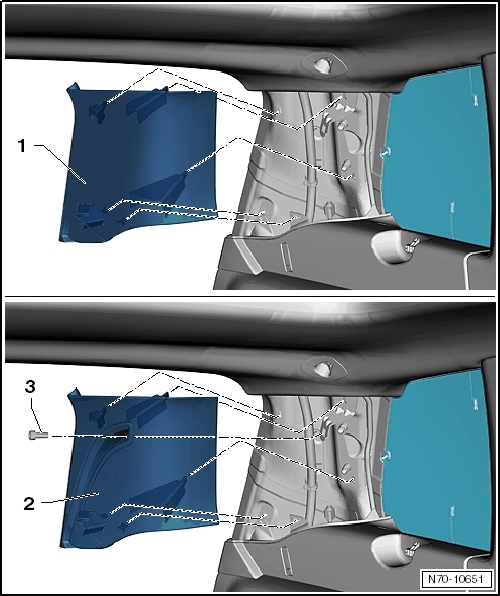

Fig 1: Unscrewing Bolt -3- (3 Nm) And Unclipping D-Pillar Trim -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
