A-Pillar Upper Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the instrument panel side cover. Refer to SIDE INSTRUMENT PANEL COVERS, REMOVING AND INSTALLING .

-- Remove the A-pillar center trim. Refer to A-PILLAR CENTER TRIM, REMOVING AND INSTALLING .

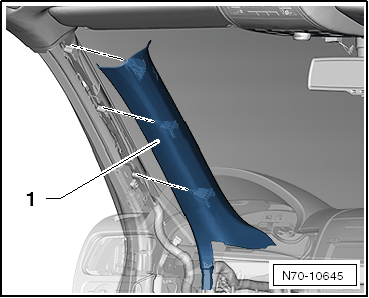

-- Pull the trim -1- in the area of the "airbag" label into the vehicle interior out of the catch in the A-pillar.

Fig 1: Pulling Upper A-Pillar Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cut through the clip -1- using a diagonal cutter.

Fig 2: Identifying Clip -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the trim out of the remaining mounts.

-- Remove the part of the clip still in the body using the :T10236 .
