A-Pillar Lower Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the instrument panel side cover. Refer to SIDE INSTRUMENT PANEL COVERS, REMOVING AND INSTALLING .

-- Remove the A-pillar center trim. Refer to A-PILLAR CENTER TRIM, REMOVING AND INSTALLING .

-- Remove the hood release lever on the driver side. Refer to HOOD .

-- Remove the B-pillar trim. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Unclip the sill panel trim -1- from the B-pillar -arrow A-.

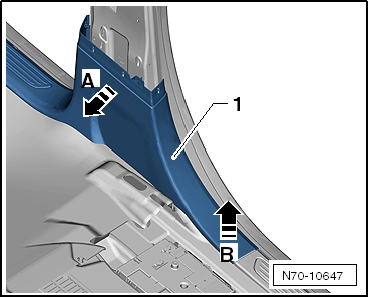

Fig 1: Identifying Unclipping Sill Panel Trim -1- From B-Pillar

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the sill panel trim from the longitudinal member -arrow B-.

-- Remove the bolt -1- on the driver side (2 Nm).

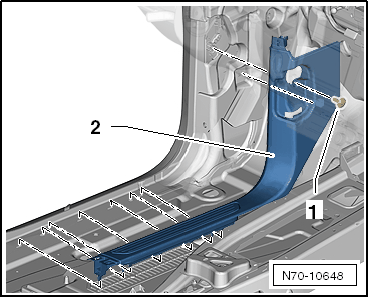

Fig 2: Pulling Trim -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the trim -2- in the upper area inward out of the mounts in the body.

-- Unclip the trim from the longitudinal member.
