A-Pillar Center Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the instrument panel side cover. Refer to SIDE INSTRUMENT PANEL COVERS, REMOVING AND INSTALLING .

-- Unclip the trim -1-.

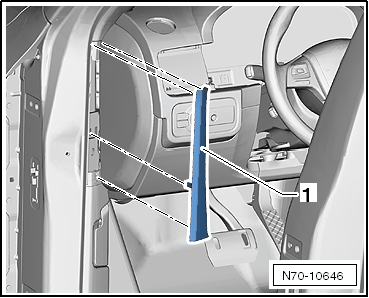

Fig 1: Identifying Removal/Installation Of Center A-Pillar Trim
GWWN70-10646Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
