Supports, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

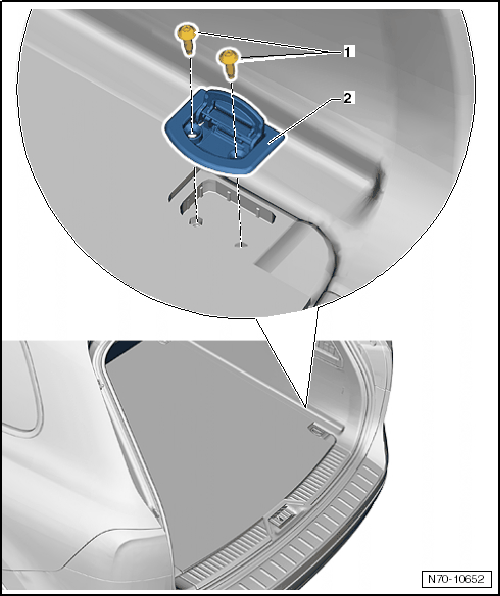

-- Fold up the tie-down bracket -2- and remove the 2 screws -1- (8 Nm ).

-- Remove the remaining 3 tie-downs as described.

Fig 1: Identifying Tie-Down Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

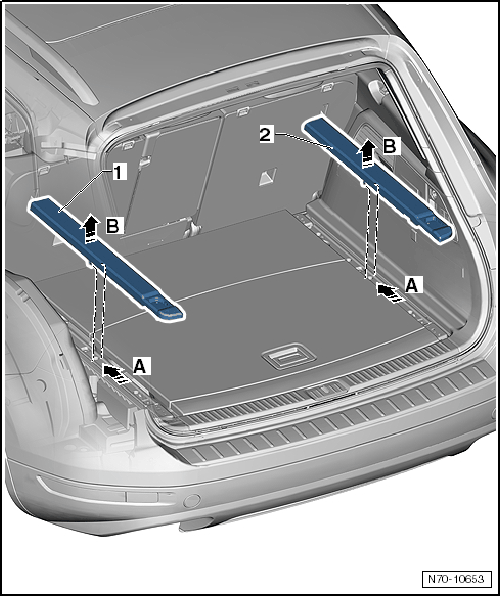

-- Slide the supports -1- and -2- forward -arrows A-.

-- Remove the supports -arrows B-.

Fig 2: Identifying Removal Of Supports In Upward Direction -Arrows B-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
