Luggage Compartment Side Trim Panels, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition.

-- Remove the seat benches. Refer to BENCH SEATS, REMOVING AND INSTALLING .

-- Remove the rear seats. Refer to REAR SEATS, REMOVING AND INSTALLING .

-- Remove the belt end fittings for the outer rear seats. Refer to REAR SEAT OUTER SEAT BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the C-pillar trim. Refer to C-PILLAR TRIM, REMOVING AND INSTALLING .

-- Wheel Housing Trim, Removing and Installing. Refer to WHEEL HOUSING TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the supports. Refer to SUPPORTS, REMOVING AND INSTALLING .

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Tilt the coat hook -2- down and remove the screw -1- (4.5 Nm).

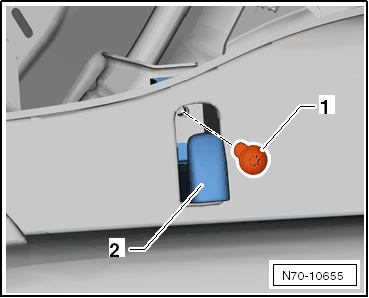

Fig 1: Tilting Coat Hook -2- Down To Unscrew Bolt -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Use a "TORX T15 screwdriver" to remove the expanding clips -1- and -2-.

-- Unclip the front and rear luggage compartment trim panels in the direction of the vehicle interior.

-- Pull the luggage compartment trim panel -3- upward out of the side mount -4-.

-- Disconnect the connectors.

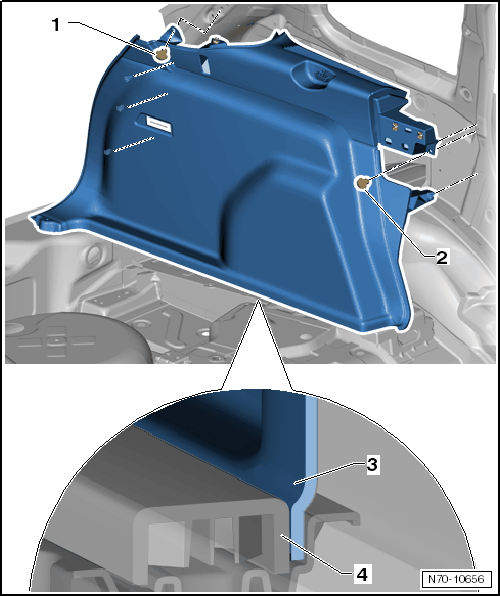

Fig 2: Identifying Expanding Clips -1 To 2-, Luggage Compartment Trim -3- & Side Mount -4-
